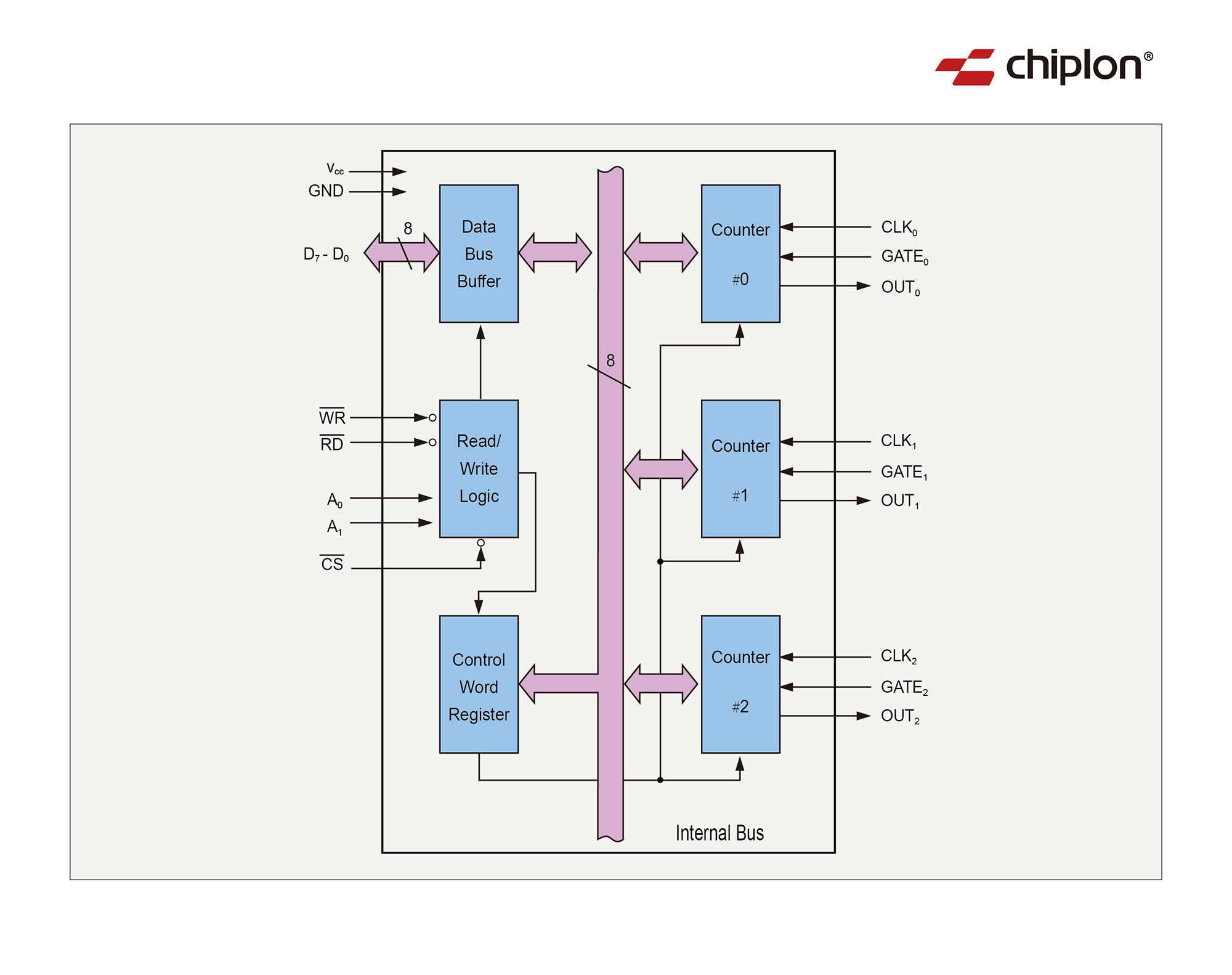

CLM82C53-2 is a programmable interval timer designed based on silicon gate CMOS technology by Chiplon Microelectronics. When the chip is in standby mode, it only requires a maximum current of 100 μ A. When in operation, the power consumption is only 8mA (maximum) at 8MHz. CLM82C53-2 includes three independent counters with a maximum counting frequency of 8MHz. The timer has six different counter modes, as well as binary counting/BCD counting functions. The count value can be set in bytes or words, and users can freely program to select any function. In terms of quality control, Chiplon Microelectronics adopts advanced testing solutions independently developed to rigorously test every CLM82C53-2 product that leaves the factory, ensuring that its performance not only meets, but even exceeds, the original specification standards. Moreover, the product can operate stably within a wide temperature range of industrial grade (-40 ℃~85 ℃), without fear of various complex and harsh environments, laying a reliable foundation for various applications. Benchmarking product: OKI MSM82C53-2R3

The maximum operating frequency is 8MHz

High-speed and low-power performance have been achieved by adopting silicon gate CMOS technology

Completely static operation

Three independent 16-bit decrement counters

Single power supply voltage ranging from 3V to 6V

Each counter has six counting modes

Binary and decimal counting can be performed

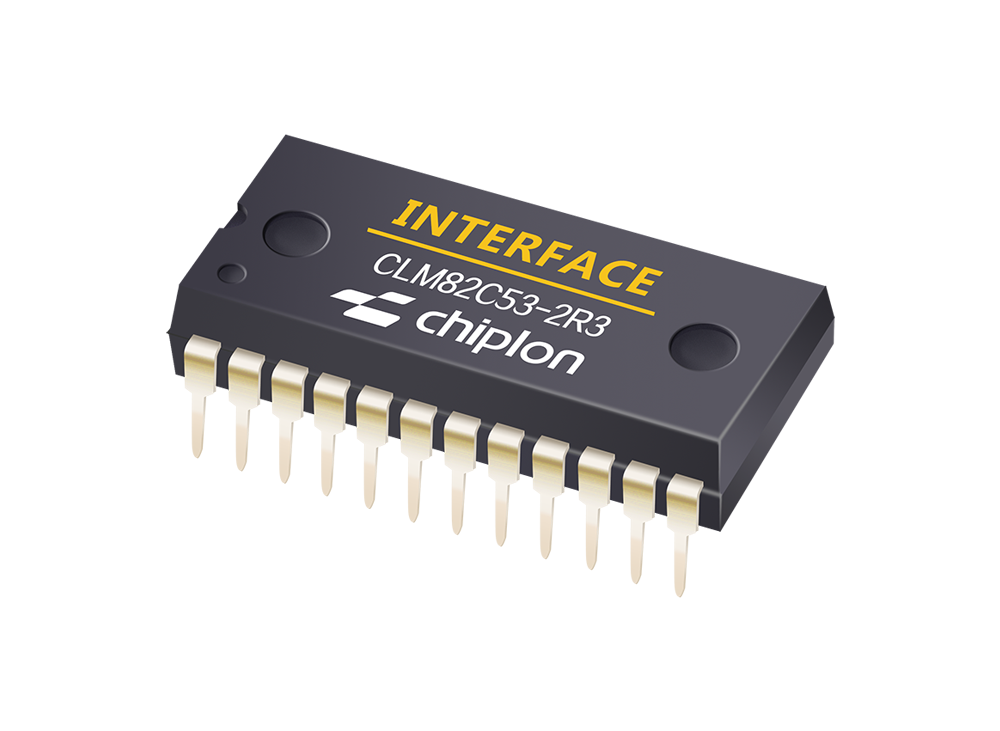

CLM82C53-2R3 DIP-24（DIP-24-P-600-2.54）

CLM82C53-2J3 PLCC-28 （PLCC-28-P-S450-1.27）

CLM82C53-2G3-K SSOP-32（SSOP-32-P-430-1.00-K）

Industrial control computer system

Industrial automation and process control

Communication equipment

Testing and measuring instruments

Embedded system
