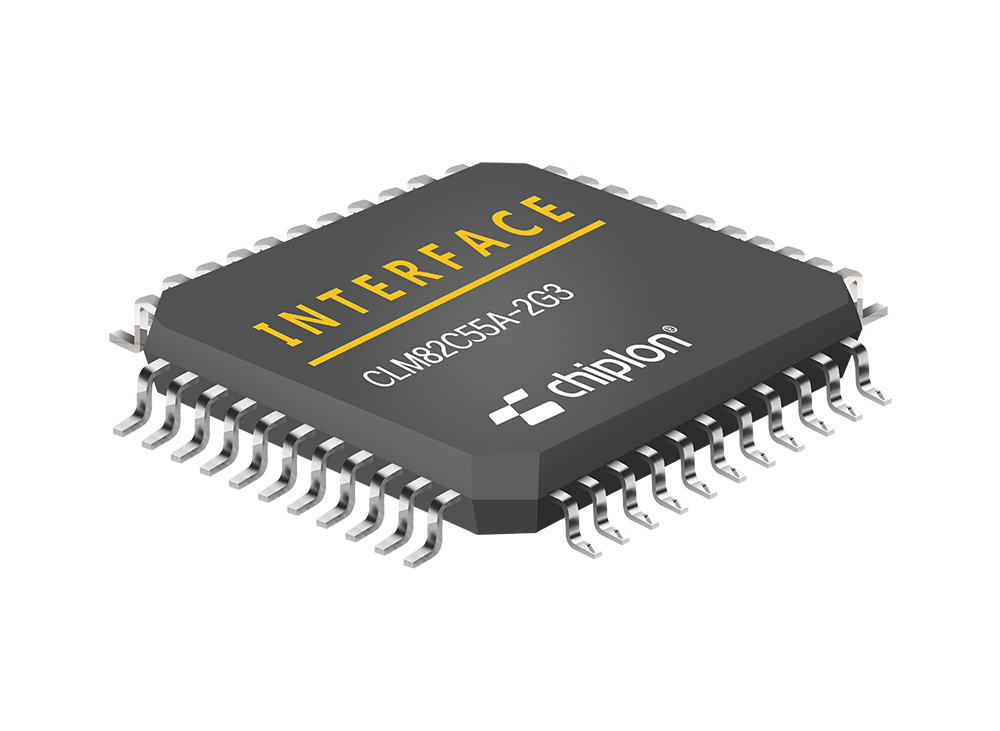

The CLM82C55A-2G3 is a CMOS programmable peripheral interface circuit developed by Chiplon Microelectronics.It is a general-purpose programmable I/O device that can be compatible with many different microprocessors.It provides 24 programmable I/O pins that can be programmed in groups of 12, and can be used in three main operating modes. It has control word read back function, direct set/reset function, and all I/O ports have 2.5mA drive capability, with strong applicability. In static CMOS circuit design, it can ensure lower operating power consumption. The product can directly pin to pin replace similar international products without the need to change the circuit board or system software, achieving complete compatibility and replacement. Chiplon Microelectronics has developed its own testing plan to ensure that the factory products meet or even exceed the original specifications, supporting industrial grade (-40℃ ~ 85℃) working temperatures. Benchmarking products: MSM82C55A-2GS-2K-7

24 programmable I/O pins

Full TTL compatibility

No "waiting state" at high speed

Direct bit setting/reset function

Enhanced control word reading capabilities

All I/O ports have 2.5mA drive capability

Low static Power (ICCSB) -10uA

Switching power supply

Home appliance motor control

Printing equipment

Numerical control machine tool

Packaging equipment

Intelligent security
